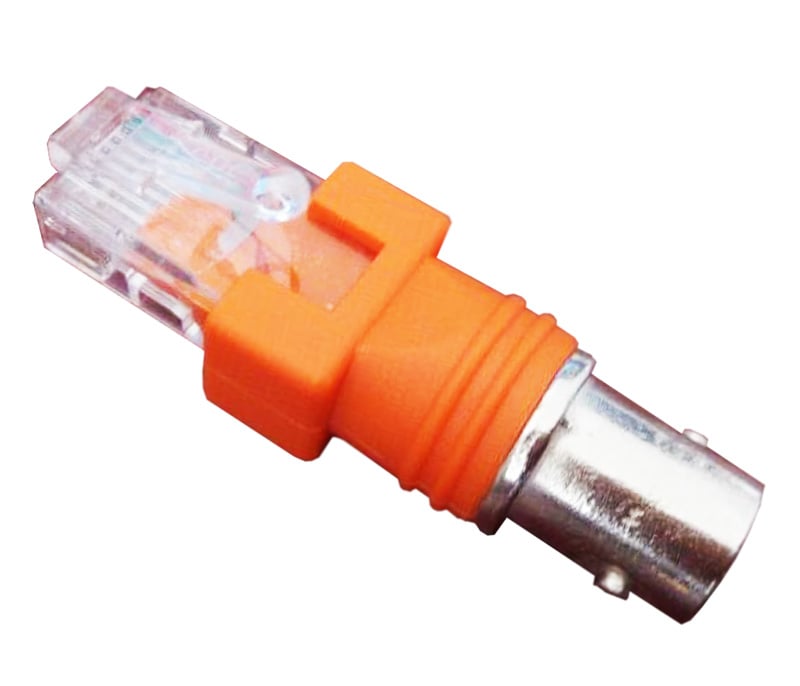

BNC to RJ45 Connector SA-C1

0 Review(s)

Your Price: $11.90

Retail Price:$19.00

You Save:$7.10(37%)

In Stock.

Part Number:SA-C1

Quantity

Connector SA-C1 using for converting Coaxial cable (BNC connector) to Network cable (RJ45). It builds by our professionals to provide best quality to our clients. It has compact size, beautiful design and build from high quality components. Connector SA-C1 will help you connect from Analog cable to Ethernet. For this you just need connect SA-C1 to your old cable (Coaxial cable, BNC connector).

Material And Plating:

Parts Name	Material	Plating
Body	Brass	Nickel Plated
Male center contacts	Brass	Gold Plated
Insulators	PTFE	------------
Gaskets	Beryllium copper	Gold or Nickel Plated
Crimp ferrules	Copper alloy	Gold or Nickel Plated

Weatherproof Rate: IP67;

Operating Temperature: -45~+65°C;

Durability: = 500 Mating Cycles;

Contact Resistance:

Center conductor: =1.5mO,
Outer conductor: =1mO;

Characteristic impedance: 50O 75O;

Frequency Range: DC~4GHz(50O), DC~2GHz(75O);

Dielectric Resistance: =5O;

Disengage Force: =0.6N;

Dielectric Withstanding Voltage: =1500V RMS;

Weight: 0.015kg
